Customized

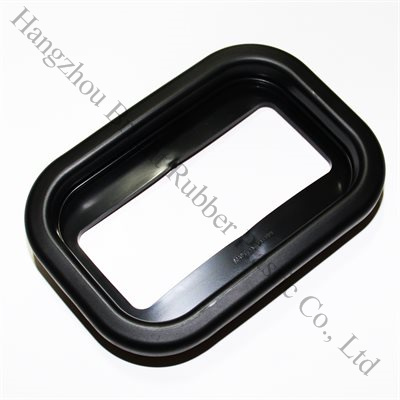

Rectangular Rubber Grommet
Shape (for Gasket): Rectangular
Dust Prevention Sealing
Black/White/Blue/Red/Yellow, etc
30-90 Shore a
>=17MPa
>=300%
-40~230 Celsius Degree
Welcomed
Format Auto CAD,Pdf,JPG
BRP
Standard Exporting Package, Carton, Pallets
According to custom′s request
China
4016931000
Material | NR, NBR, SBR, EPDM, FKM, Silicone, HNBR, Viton etc. |
Size | According to drawing |
Color | Customized |
Temperature | Commom: -40~230 Celsius Degrees |
Special features /Working environment | Non-toxic; oil-resistance; heat resistance; abrasion-resistance; aging resistance; insulation; acid and alkaline resistancel airtight; shock absorption, etc. |
Application | Used in household, fitting, pipes and other industry accessories and auto parts. |
Certification | SGS, RoHS and FDA. |
Delivery time | 20-35days after prepayment received |
MOQ | 100-1000pcs |
Packing details | According to your request |
Shipment | By express(DHL/UPS/FEDEX)/By sea/By air |
Port | FOB SHANGHAI OR NINGBO |
E - Excellent G - Good F - Fair P - Poor | ||||||||||||
Material Properties | ||||||||||||
Property | NBR | EPDM | CR | Silicone | FKM | NR | SBR | PU | HNBR | FVMQ | IIR | Aflas |
Abrasion Resistance | G | G | G | P | G | E | E | E | G | P | G | G |
Acid Resistance | F | G | F | F | E | F | F | P | E | F | G | E |
Chemical Resistance | F | E | F | G | E | F | F | F | G | E | E | E |
Cold Resistance | G | G | F | E | P | G | G | G | G | G | G | P |
Compression Set Resistance | G | G | F | G | E | G | G | F | G | G | F | G |
Dynamic Properties | G | G | F | P | G | E | E | E | G | P | F | G |
Electrical Properties | F | G | F | E | F | G | G | F | F | E | G | E |
Elongation | G | G | G | F | F | F | F | F | G | F | G | F |
Flame Resistance | P | P | G | F | E | P | P | P | P | G | P | E |
Heat Resistance | G | G | G | E | E | F | F | F | E | E | G | E |
Impermeability | G | G | G | P | G | F | F | G | G | P | E | G |
Oil Resistance | E | P | F | F | E | P | P | G | E | G | P | E |
Ozone Resistance | P | E | G | E | E | P | P | E | G | E | G | E |
Tear Resistance | F | G | F | P | F | G | G | G | F | P | G | P |
Tensile Strength | G | G | G | P | G | E | E | E | E | F | G | G |
Water Resistance | G | E | F | G | F | G | G | P | E | F | G | G |
Weather Resistance | F | E | E | E | E | F | F | E | G | E | G | E |
Material | NR, NBR, SBR, EPDM, FKM, Silicone, HNBR, Viton etc. |
Size | According to drawing |
Color | Customized |
Temperature | Commom: -40~230 Celsius Degrees |
Special features /Working environment | Non-toxic; oil-resistance; heat resistance; abrasion-resistance; aging resistance; insulation; acid and alkaline resistancel airtight; shock absorption, etc. |
Application | Used in household, fitting, pipes and other industry accessories and auto parts. |
Certification | SGS, RoHS and FDA. |
Delivery time | 20-35days after prepayment received |
MOQ | 100-1000pcs |
Packing details | According to your request |
Shipment | By express(DHL/UPS/FEDEX)/By sea/By air |
Port | FOB SHANGHAI OR NINGBO |
E - Excellent G - Good F - Fair P - Poor | ||||||||||||
Material Properties | ||||||||||||
Property | NBR | EPDM | CR | Silicone | FKM | NR | SBR | PU | HNBR | FVMQ | IIR | Aflas |
Abrasion Resistance | G | G | G | P | G | E | E | E | G | P | G | G |
Acid Resistance | F | G | F | F | E | F | F | P | E | F | G | E |
Chemical Resistance | F | E | F | G | E | F | F | F | G | E | E | E |
Cold Resistance | G | G | F | E | P | G | G | G | G | G | G | P |
Compression Set Resistance | G | G | F | G | E | G | G | F | G | G | F | G |
Dynamic Properties | G | G | F | P | G | E | E | E | G | P | F | G |
Electrical Properties | F | G | F | E | F | G | G | F | F | E | G | E |
Elongation | G | G | G | F | F | F | F | F | G | F | G | F |
Flame Resistance | P | P | G | F | E | P | P | P | P | G | P | E |
Heat Resistance | G | G | G | E | E | F | F | F | E | E | G | E |
Impermeability | G | G | G | P | G | F | F | G | G | P | E | G |
Oil Resistance | E | P | F | F | E | P | P | G | E | G | P | E |
Ozone Resistance | P | E | G | E | E | P | P | E | G | E | G | E |
Tear Resistance | F | G | F | P | F | G | G | G | F | P | G | P |
Tensile Strength | G | G | G | P | G | E | E | E | E | F | G | G |
Water Resistance | G | E | F | G | F | G | G | P | E | F | G | G |
Weather Resistance | F | E | E | E | E | F | F | E | G | E | G | E |
